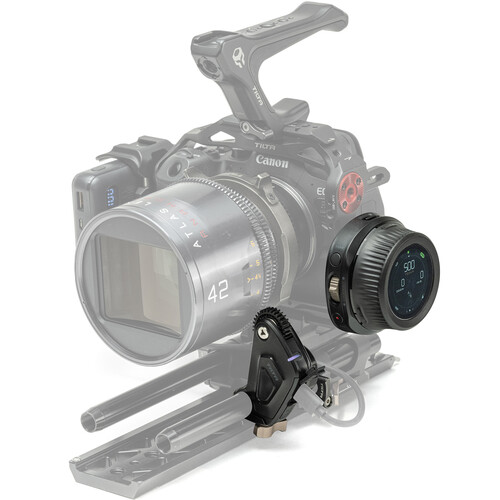

View your wireless channel, Wi-Fi status, battery life, Bluetooth connectivity, and standby status on the outer portion of the controller's 1.6" touchscreen dial. FIZ parameters and A/B stop live on the center portion, with the option to lock the screen or toggle between auto and manual focusing. Two other menus can be accessed from the main screen to lock and adjust your connected camera's settings and view your current lens parameters. Additional settings that can be accessed from the interface include pairing and accessing manual controls for the motor as well as additional customizations for the handwheel.

The USB-C port on the handwheel can be used to facilitate wired connections to compatible cameras. It can also recharge the internal battery when depleted and facilitate firmware updates to the motors or other Nano II accessories. Power can also be delivered to the Nano II using the contact points on the back of the handwheel, which are compatible with select Tilta power accessories. Use professional batteries, power banks, or separately available Tilta power handles to power the motor via the USB-C input. The whole system can run for up to 20 hours.

• A run/stop button powers up the handwheel and sends run/stop commands to your connected camera via USB-C for Sony and Canon cameras.
• A zoom rocker can be set to adjust your lens's zoom, focus, or iris adjustment via Bluetooth motor connection.
• A function button calibrates your motors and sets A/B stops.
• Use the TF/DF switch to spin the wheel infinitely or set stops in both directions. TF mode is preferred when using the handwheel in tandem with the Nucleus motor, while DF mode works best with the DJI Focus Motor. Spinning the wheel control will adjust your FIZ sensitivity.
