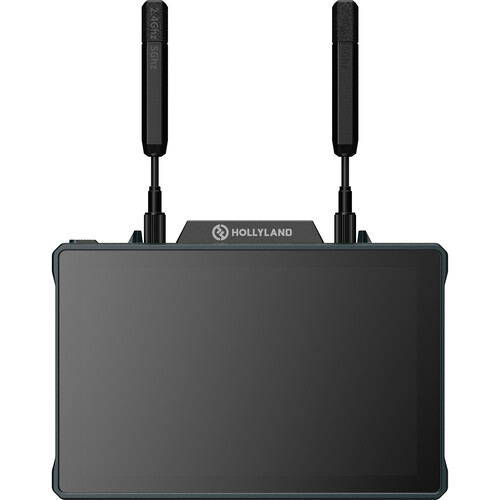

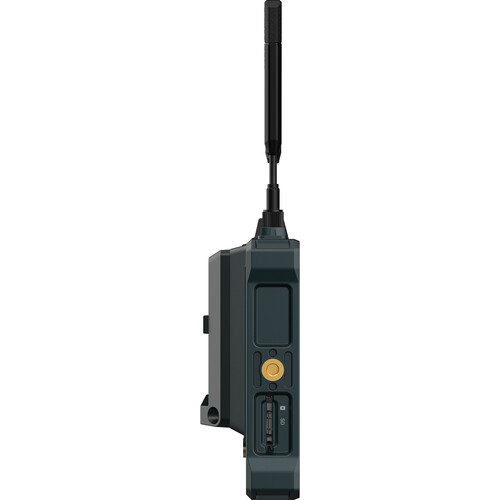

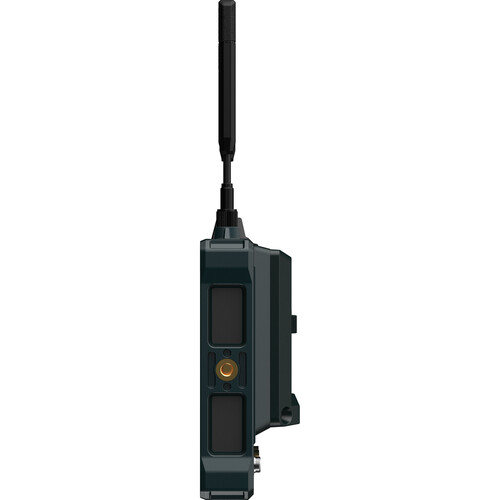

Hollyland Pyro 7 Wireless Two Monitor Kit

Price/Day: EGP. 1000

* Monitor Wireless Video up to 1300' Away * 7" Touchscreen 1920 x 1200 Display * Transmitter & Receiver Mode Switching * New Capsule Antennas & Record/Playback * One Transmitter Can Send to 4 Receivers * 1080p SDI Input; Up to UHD 4K30 via HDMI * High 1200 cd/m² Brightness * Auto Frequency Hopping, 2.4/5 GHz Bands * RTMP Streaming, USB/SD Card Import/Save * Built-In Dual L-Series Battery Plate

Product Details

Overview

Transmit, receive, and monitor high-quality wireless video transmissions using the versatile Pyro 7 Wireless Transceiver Monitor Kit from Hollyland. This kit comprises a set of two Pyro 7 transceivers/monitors that can be used in transmitter or receiver mode. The Pyro 7 takes the previous M1 transceiver/monitor and makes everything bigger and better with a bright 7" touchscreen display, dual L-series battery plate, wireless transmission up to 1300' away, updated HollyOS imaging tools, SD card video recording, HDMI/SDI input/output, RTSP streaming, one Pyro 7 sends to up to four receivers, as well as auto dual-band 2.4/5 GHz hopping and auto-frequency hopping.
Broadcast Mode
The Pyro 7 features wireless broadcast technology that enables one transmitter to connect to up to four receivers with stable, line-of-sight signals. When Broadcast mode is activated, the transmitter can transmit signals to a maximum of four receivers, and when it's deactivated, the transmitter can transmit signals to up to two receivers and two mobile devices.
Large, Bright Monitor
The Pyro 7 features a 7" display with a brightness of 1200 cd/m², so it's clearly viewable in bright sunlight or dim environments. The screen brightness is adjustable for optimal performance.
Versatile I/O

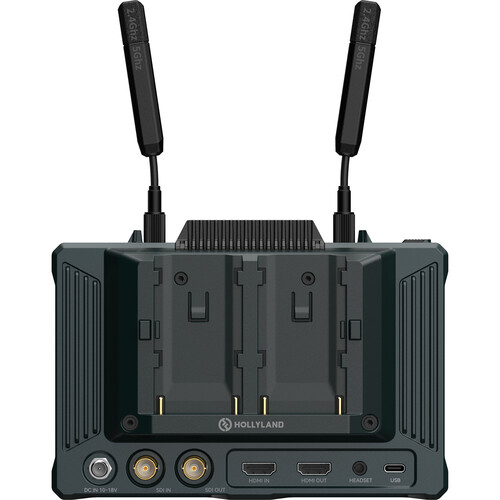

The Pyro 7 can be switched to be a transmitter or receiver. When in transmitter mode, the monitor features one HDMI input, one SDI input, one HDMI loop output, and one SDI loop output. When in receiver mode, it features one SDI output, one HDMI output, and one SDI loop output.
Quick Source Switching
The transceiver enables seamless connection with all Pyro series units using a grouping preset. You can group multiple devices and then instantly switch monitoring between two cameras by utilizing two customizable buttons.
Long Transmission Range
Utilizing 2.4 and 5 GHz dual-band technology, the Pyro 7 features a stable line-of-sight transmission range of up to 1300' with a minimal transmission latency of 60ms with no image degradation. There are two transmission modes to choose from: Smooth mode adjusts the transmission for the lowest latency for longer distances, and HD mode optimizes the image with a stable bitrate up to 12 Mb/s, even up to 1300' away.
Auto Dual-Band Hopping (ADH)
With Auto Dual-Band Hopping (ADH) and Auto Frequency Hopping (AFH) technologies operating on both 2.4 and 5 GHz bands, the Pyro 7 can automatically choose the clearest channel for reliable and uninterrupted wireless video transmission. These technologies address common issues such as signal interference, low transmission efficiency, and frequency congestion. The omnidirectional high-gain antennas also ensure stable signals in all directions.
RTMP Streaming
With built-in RTMP streaming, you can easily stream video to popular live broadcast or conferencing platforms like Zoom, YouTube Live, Twitch, TikTok Live, and more.
Video Recording to SD Card
The Pyro 7 features an SD card slot that supports extended mp4 video recording of up to 40 minutes in a single session using an external standard SD card. You can also use an SD card to apply custom LUTs during video export. It features file organization and supports a streamlined editing workflow. You can also import data from external devices and ingest on-set screenshots, overlaying them onto the current recording screen for scene restoration or replication purposes.
Image Tools
The custom shortcut key feature used for dual-view monitoring can also be used to quickly launch image tools such as waveform, recording, focus assist, and other image analysis functions.
Durable Yet Lightweight Construction
The case of Pyro 7 is made of aerospace-grade magnesium-aluminum alloy with a robust, rigid design that is 30% lighter and better at heat dissipation than aluminum-only models.

Specifications

Key Specs
Display Size
7.0" / 17.8 cm
Native Resolution
1920 x 1200
Touchscreen
Yes
HDR Support
No
Video I/O
1x BNC (3G-SDI) Input
1x BNC (3G-SDI) Output
1x HDMI 1.4b Input
1x HDMI 1.4b Output
Show Less
Media/Memory Card Slot
Single Slot: SD/SDHC/SDXC [Supports Recording]
Video Format
HDMI
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24
1080i: 60/59.94/50
720p: 60/59.94/50
SDI
1080p: 60/59.94/30/29.97/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
Show Less
Phantom Power
No
Battery
2x L-Series Mount on Included, Interchangeable Plate
Power Consumption
22 W (Maximum)
Display
Panel Type
LCD
Display Size
7.0" / 17.8 cm
Native Resolution
1920 x 1200
Aspect Ratio
16:9
Touchscreen
Yes
Maximum Brightness
1200 nits / cd/m2
Contrast Ratio
1000:1
HDR Support
No
LUT Support
Yes
Image Controls
Focus Peaking, Waveform
Inputs/Outputs
Antenna I/O
2x RP-SMA Male
Video I/O
1x BNC (3G-SDI) Input
1x BNC (3G-SDI) Output
1x HDMI 1.4b Input
1x HDMI 1.4b Output
Embedded Audio
HDMI/SDI: 8-Channel
Audio I/O
1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker
No
Power I/O
1x Barrel Input
Other I/O
1x USB-C (Firmware) Input
Media/Memory Card Slot
Single Slot: SD/SDHC/SDXC [Supports Recording]
Encryption
No
Wireless
Wireless Range
1300' / 396.2 m (Line-of-Sight)
650' / 198.1 m
Channel Bandwidth
40 MHz, 20 MHz
Frequency Range
US: 5.1 to 5.8 GHz
US: 2.412 to 2.484 GHz
Latency
60 ms
RF Power
23 dBm
RF Sensitivity
-80 dBm
Wi-Fi
No
Bluetooth
No
Mobile App Compatible
Yes (Required): Android & iOS
App Name: HollyView
Functionality: Adjust Settings, Firmware Update, Remote Control, Setup, View Live Feed
Format Support
Video Format
HDMI
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24
1080i: 60/59.94/50
720p: 60/59.94/50
SDI
1080p: 60/59.94/30/29.97/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
Audio Format
4-Channel
Wireless Video Compression
Compressed
Timecode Support
Yes
Recording
Pulldown Conversion
No
Camera Trigger
No
Pre-Roll Record
No
Encoding Formats
x
H.264
Closed Caption Support
No
Reference Input
No
Phantom Power
No
Power
Input Power
10 to 18 VDC at 2.5 A
Battery
2x L-Series Mount on Included, Interchangeable Plate
Power Consumption
22 W (Maximum)
Mounting
Tripod/Accessory Mounting
Bottom/Left/Right
1x 1/4"-20 Female
General
Environmental Resistance
No
Operating Conditions
14 to 113°F / -10 to 45°C
Storage Conditions
-40 to 140°F / -40 to 60°C
Material of Construction
Aluminum, Magnesium
Dimensions
7.1 x 5 x 1.3" / 180 x 127 x 31.8 mm (Excluding Antenna)
Weight
1.20 lb / 545.00 g, Excluding Antenna

Resources

Includes

Hollyland Pyro 7 Wireless Transceiver Monitor Kit (Set of Two)
2 x Hollyland Pyro 7 Wireless Transceiver Monitor
4 x Paddle Antenna
2 x SD Card
