Overview

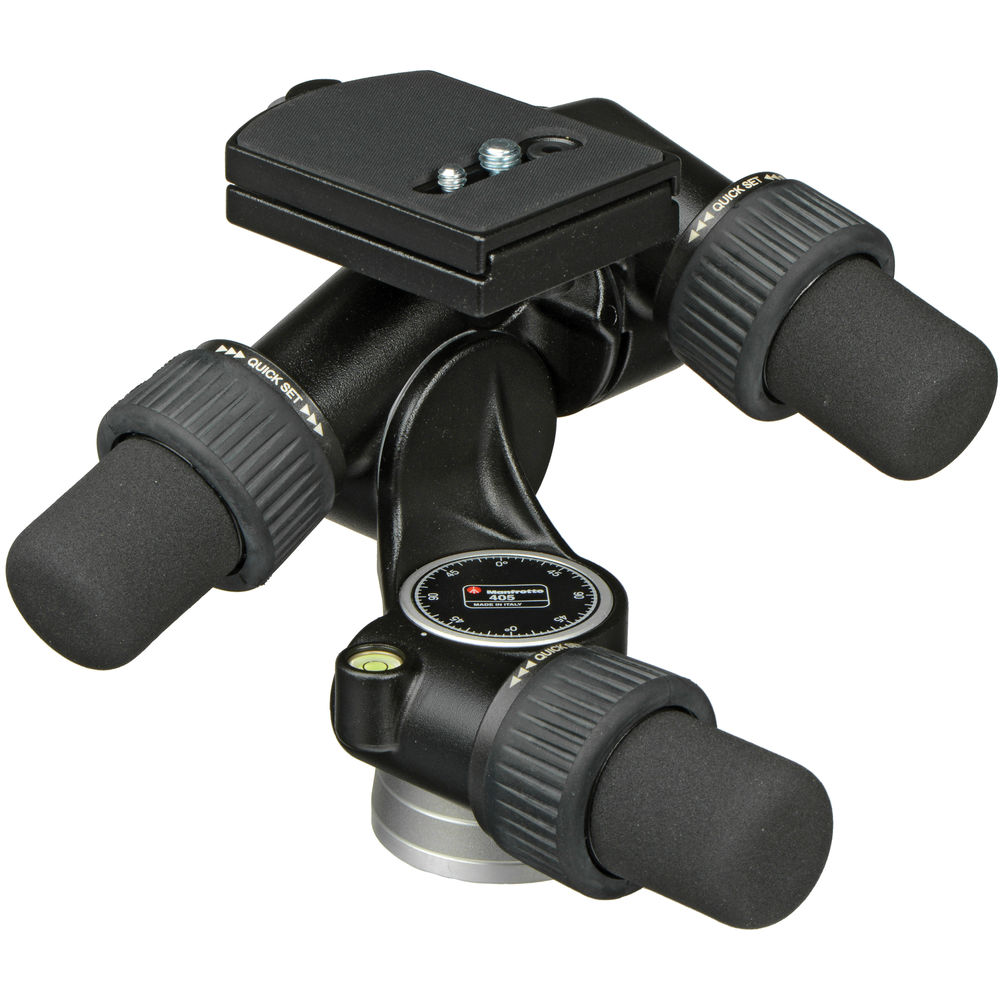

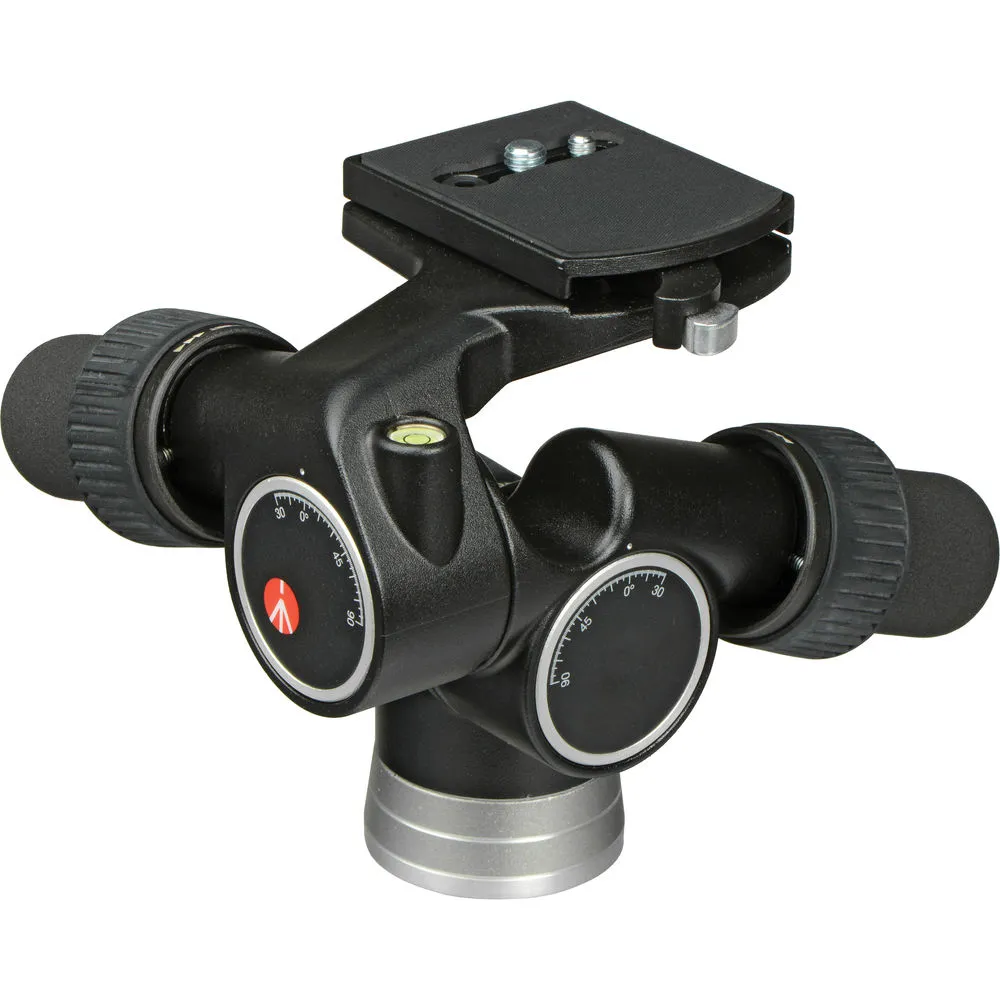

Manfrotto 405 Geared Head Overview
This 405 3-Way, Geared Pan-and-Tilt Head from Manfrotto has a load capacity of 16.5 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. It includes an integrated RC4 quick release cam lock and a 410PL Quick Release Plate. RC4 compatible quick release plates such as the 410PL can removed from the head by pulling the cam lock's spring-loaded lever, which also allows the plate to be instantly reattached.

Cameras or accessories that are compatible with a 1/4"-20 or 3/16"-20 mount can be connected to the 410PL Quick Release Plate, which measures 2.5 x 3.3 x 0.5" and has a rubberized, non-slip surface. The head can be rotated 360°, tilted 90° forwards or 30° backwards, as well as 90° sideways for portrait orientation. Each of these three movements function independently of each other and have individual, snap-lock knobs with easy-to-turn, fluted grips. Turning each snap-lock knob allows the corresponding movement to be rapidly adjusted, and once the knob is released, the adjustment is locked into place. An additional, rubberized knob set within each snap-lock knob allows incremental, geared adjustments, which help to ensure that any device mounted to this 405 3-Way, Geared Pan-and-Tilt Head is precisely positioned relative to the subject.

To further promote fast and repeatable device positioning, this 405 3-Way, Geared Pan-and-Tilt Head also includes dedicated angle scales for each movement that are designed for easy visibility.

405 3-Way, Geared Pan-and-Tilt Head
16.5 lb load capacity
Compatible with tripods or support systems that feature a 3/8"-16 mount
Can be rotated 360°, tilted 90° forwards or 30° backwards, as well as 90° sideways for portrait orientation
Rotation, backwards and forwards tilt, as well as portrait orientation tilt each function independently of each other and have individual snap-lock knobs with easy-to-turn, fluted grips
Turning each snap-lock knob allows the corresponding movement to be rapidly adjusted, and once the knob is released, the adjustment is locked into place
An additional, rubberized knob set within each snap-lock knob allows incremental, geared adjustments
Dedicated angle scales for each movement that are designed for easy visibility further promote fast, repeatable, and accurate device positioning
Integrated, RC4 quick release cam lock
Two bubble levels for landscape orientations and one bubble level for portrait orientations
Durable, aluminum-alloy construction
410PL Quick Release Plate
Compatible with Manfrotto RC4 quick release cam lock
Measures 2.5 x 3.3 x 0.5" and has a rubberized, non-slip surface
1/4"-20 and 3/8"-16 mount
Durable, aluminum-alloy construction

Specifications

Resources

Includes

Price/Day : 400
